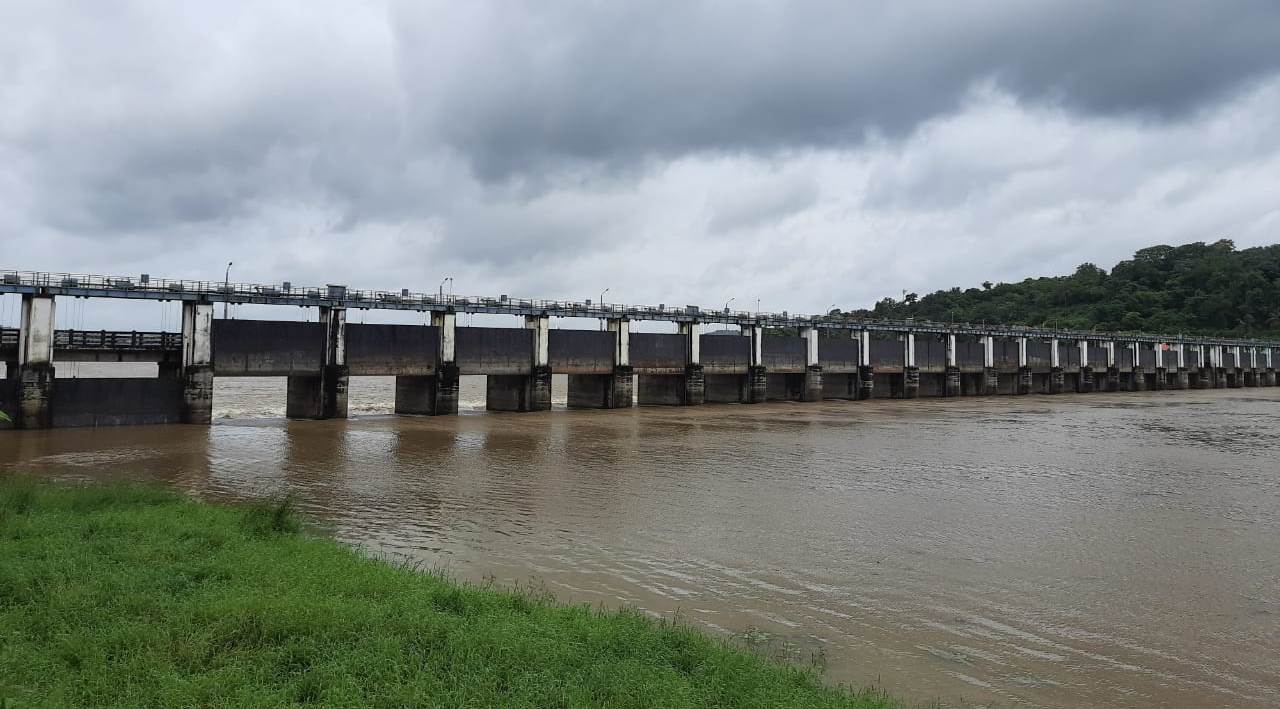

Velliyankallu RCB, Thrithala
Thrithala RCB is envisaged for irrigating 3997 Ha. land in Ottappalam taluk, irrigating 1887 Ha. area through lift irrigation and supplying drinking water to around 7 lakhs people in 22 grama panchayaths of Guruvayoor, Chavakkad and Kunnamkulam municipalities.
| Date of Commencement | : May 1998 |
|---|---|
| Date of Commissioning | : 02/09/2007 |
| Bed Level | : +10.000 m |
| Top Level of Weir | : +10.500 m |
| Top level of shutter | : +15.000 m |
| FRL | : +14.500 m |
| No. of Spans | : 27 x 9.00 m. |
| Total Length of Bridge | : 295.00 m |
| Size of Shutters | : 9 x 4.50, 24Nos. |
| : 9 x 5.00, 3 Nos. | |
| Storage capacity | : 13.30 Mm3 |
| Water spread area | : 382.00 Ha |
| Annual requirement of water for Irrigation | : 31Mm3 |
| Annual requirement of water for Drinking | : 18 Mm3 |
| Total requirement | : 49 Mm3 |
| Gross Ayacut of the Project | : 3997 Ha. |
| Road width | : 2 lane traffic with one meter width foot path on one side |
| Area of land acquired | : 8.6022 Ha |
| Location:-Latitude | : 10.81738(N 10049’2.57412’’) |
| Longitude | : 76.11659( E 7606’59.73264’’) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
